MQTT Topics and Payloads

---

MQTT is not available in [AP Mode] - WiFi is REQUIRED

This page simply lists the available state and command topics, along with the payload type and an example where needed. Be sure you’ve enabled and configured MQTT according to the previous section.

Substitutions

For this document, [subscribe_topic] and [command_topic] represent the topics entered in the MQTT Setup & Configuration.

---

State Topics

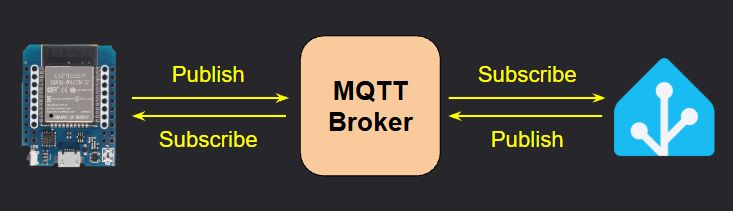

These topics are published FROM the Parking Assistant TO the MQTT broker.

• All Topics are preceded with stat/[publish_topic]
  • Example Full Topic: stat/parkasst01/ledstate)
• Unless otherwise specified, all state topics are published with a retain flag of TRUE.

Topic stat/[publish_topic]...	Payload	Notes
/status	online or offline	State of the system. Populated via Last Will and Testament.
/ipaddr	IP address	IP address of the controller (e.g. 192.168.1.225)
/macaddr	MAC address	MAC Address of the controller’s ESP32 (e.g. 94:B9:7E:E6:BD:9F)
/version	vX.XX (ESP32)	Current firmware version number
/ledstate	ON or OFF	Current state of LED strip
/sensoroverride	ON or OFF	State of the sensor override switch
/parkdistance	number	Distance reported by front sensor. Will be in published in units defined under hardware settings (inches or millimeters).
/sidedistance	number	Distance reported by the side sensor (if installed and enabled). Inches or millimeters based on system’s unit selection.
/carpresence	ON or OFF	Indicates presence of vehicle (object) in a zone
/zone	Wake, Active, Parked, Backup, Vacant	Indicates the zone of the vehicle or object. Vacant when no object detected.
/ledbrightness	1 - 255	LED brightness (when system is in ‘active’ mode)
/brightnesssleep	0 - 255	LED brightness (when system is in ‘standby’ mode)
/ledcolor	rr,gg,bb	Comma-delimited string of red, green and blue that comprises the current (or last) LED color. Each value ranges from 0-255. Example: 255,0,0 = red.
/colorwake	HEX Color (#000000)	HEX Color code for the Wake Zone.
/coloractive	HEX Color (#000000)	HEX Color code for the Active (approach) Zone.
/colorparked	HEX Color (#000000)	HEX Color code for the Parked Zone.
/colorbackup	HEX Color (#000000)	HEX Color code for the Backup Zone.
/colorstandby	HEX Color (#000000)	HEX Color code for the Standby LEDs.
/colormanual	HEX Color (#000000)	HEX Color code when LED color is manually set (e.g. via MQTT or API).
/effect	Out-In, In-Out, Full-Strip, Full-Strip-Inv, Solid	Active zone LED effect setting. Matches one of the values from the Effect drop down on the main web page.
/distwake	number	Wake zone distance setting. Will be reported in inches with a single decimal (e.g. 54.7) when inches are the system units, otherwise as an integer (e.g. 1458) for millimeters.
/distactive	number	Active zone distance setting. Reported the same as wake distance (in or mm).
/distpark	number	Parked zone distance setting. Reported the same as wake distance (in or mm).
/distbackup	number	Backup zone distance setting. Reported the same as wake distance (in or mm).
/sidedistleft	number	Side sensor LEFT distance setting. Reported the same as wake distance (in or mm). Will always show 0 if not installed or enabled.
/sidedistright	number	Side sensor RIGHT distance setting. Reported the same as wake distance (in or mm). Will always show 0 if not installed or enabled.
/light*	JSON Payload	Primarily for use by the Home Assistant light card. *See discussion below for more information.

All state topics are initially published following the initial system boot. See the prior section MQTT Setup & Config for information as to when state topics are updated.

*Special /light Topic

This special topic is included due to the way that a ‘light’ entity is handled in Home Assistant. A light entity contains additional details such as color and brightness, as ‘attributes’ of the light entity. For that reason, Home Assistant expects a light entity to be reported (or set) using a JSON payload structured as follows:

{
  "state": "OFF",
  "brightness": 100,
  "color_mode": "rgb",
  "color": {
    "r": 255,
    "g": 255,
    "b": 0
  }
}

For WS2812b LEDs, the color mode will always be rgb. All other values are reported the same as their corresponding individual topics.

---

Command Topics

These topics are subscribe TO by the Parking Assistant FROM commands published to the MQTT broker by other systems.

To provide the greatest flexibility when interfacing with third-party systems, some commands contain different topics that perform the same action:

• /ledbrightness and /brightness will both set the active LED brightness.

Other topics may accept different variants of the payload to set the same state:

• ON, 1, or TRUE can be used to set a state of a value to “ON”.

Addtional notes on Command Topics:

• All Topics are preceded with cmnd/[subscribe_topic]
  • Example Full Topic: cmnd/parkasst01/ledstate)
• For colors, where an RGB or HEX color string can be passed as a payload, either format is valid and will be processed:
  • RGB String example: 255,48,281
  • HEX String example: #ff2f1c (leading # is optional and may be included or omitted)
• Unless otherwise specified, all command topics should be published with a retain flag of FALSE.

⚠️ Remember the Sensor Override!
If attempting to manually control the LEDs, first set the Sensor Override setting to “ON”. If you fail to do so, any triggers by the sensors will overwrite your changes.

Don’t forget to set the override back to “OFF” to return system to normal operation!

Topic cmnd/[subscribe_topic]...	Valid Payload(s)	Notes/Example
/sensoroverride	ON/1/TRUE or OFF/0/FALSE	Sets the state of the sensor override switch.
/ledstate	ON/1/TRUE or OFF/0/FALSE	Turns the LED strip ‘on’ or ‘off’.
/ledcolor /color /colormanual	RGB or HEX color string	Sets the color of the LEDs. Payload can be comma-separated RGB string (e.g 255,48,28) or a Hex color string (e.g. #ff2f1c).
/ledbrightness /brightness	0 - 255	Sets current (active) LED brightness. Out-of-range values will be constrained to 0 or 255.
/brightnesssleep /sleepbrightness	0 - 255	Sets standby (sleep) LED brightness. Out-of-range values will be constrained to 0 or 255.
/colorwake	RGB or HEX color string	Sets the color for the Wake zone. Payload can be comma-separated RGB string (e.g 255,48,28) or a Hex color string (e.g. #ff2f1c).
/coloractive	RGB or HEX color string	Sets the color for the Active (approach) zone.
/colorparked	RGB or HEX color string	Sets the color for the Parked zone.
/colorbackup	RGB or HEX color string	Sets the color for the Backup zone (flashing). Also sets the side sensor color, if installed and enabled.
/effect	Out-In, In-Out, Full-Strip, Full-Strip-Inv, Solid	Sets the Active (approach) zone LED effect. Must match an existing effect from the dropdown on the main web page or command will be ignored.
/distwake	12-192 (inches) 305-4980 (mm)	Sets the Wake zone distance. Payload range depends upon the system’s unit settings (inches or millimeters). Out-of-range values will be constrained to the appropriate minimum or maximum value.
/distactive or /diststart	12-192 (inches) 305-4980 (mm)	Sets the Active zone distance. See /distwake notes.
/distpark	12-192 (inches) 305-4980 (mm)	Sets the Parked zone distance. See /distwake notes.
/distbackup	12-192 (inches) 305-4980 (mm)	Sets the Backup zone distance. See /distwake notes.
/sidedistleft	2 - 48 (inches) 50 - 1220 (mm)	Sets the side sensor LEFT distance. Ignored if side sensor not enabled. Out-of-range values will be constrained to the appropriate minimum or maximum value.
/sidedistright	2 - 48 (inches) 50 - 1220 (mm)	Sets the side sensor RIGHT distance. Ignored if side sensor not enabled. See \sidedistleft notes.
/light*	JSON Payload	Passed by the Home Assistant Light entity. Not normally used independently, but can be to set the LED state, color and brightness via one publish statement. Automatically enables sensor override! *See additional notes below.

Additional Notes on MQTT Commands

⚠️MQTT ONLY UPDATES “ACTIVE” SETTINGS
When system settings (such as LED brightness or zone color/distances) ar updated via MQTT, they only change the current ‘Active’ settings. If the system reboots for any reason, these changes will be lost and the last saved ‘defaults’ will be loaded.

To update save any changes made as the new ‘Defaults’, a direct command can be issued (see below) to force a save of the current active values.

Constraining Numeric Values
For commands where the payload is a numeric value range, out-of-range values are ‘constrained’ to a valid value. For example, given a payload range of 50-100, passed values < 50 will be set to 50. Passed values > 100 will be set to 100.

However, MQTT does not validate distances as it does on the web page. Using MQTT, you can set a parked zone that is further away than the active zone. In this case, the system would not respond appropriately. Use caution when manually setting distances via MQTT and assure the final zone settings are appropriate.

*Special /light Topic

This is normally used by the Home Assistant light entity card, but can also be used to set the LED state, color and brightness in one command by formatting the payload in a special JSON format:

{
  "state": "OFF",
  "brightness": 100,
  "color_mode": "rgb",
  "color": {
    "r": 255,
    "g": 255,
    "b": 0
  }
}

🛑 Sensor Override Automatically Enabled when using /light!
When a JSON payload is sent to the /light topic, the sensor override switch will automatically be set to ON. Don’t forget to reset the sensor override back to OFF after manually interacting with the LEDs to return the system to normal operation.

Direct Commands

The commands loosely correspond to the Controller Commands found on the main web page, but provide a way to initiate some system functions via MQTT.

1️⃣ Payloads Ignored
For these commands, a payload is required but ignored when processed. It is recommended that you simply pass a “1” as the payload for each of these special direct commands.

Topic cmnd/[subscribe_topic]...	Payload (ignored)	Notes/Example
/restart	1	Immediately reboots the controller
/refresh	1	Forces an immediate update of all MQTT State (/stat) topics to be published.
/otaupdate	1	Puts the system in Arduino OTA flashing mode for transferring a custom firmware build.
/saveconfig	1	Forces all current ‘Active’ settings to be saved as the new ‘Default’ values. The controller will reboot when this command is issued.

⚠️/saveconfig saves ALL active settings!**
When a /saveconfig command is issued, it saves all current active settings, not just those recently changed via MQTT. Use with caution or you may commit unplanned values to the system defaults.
